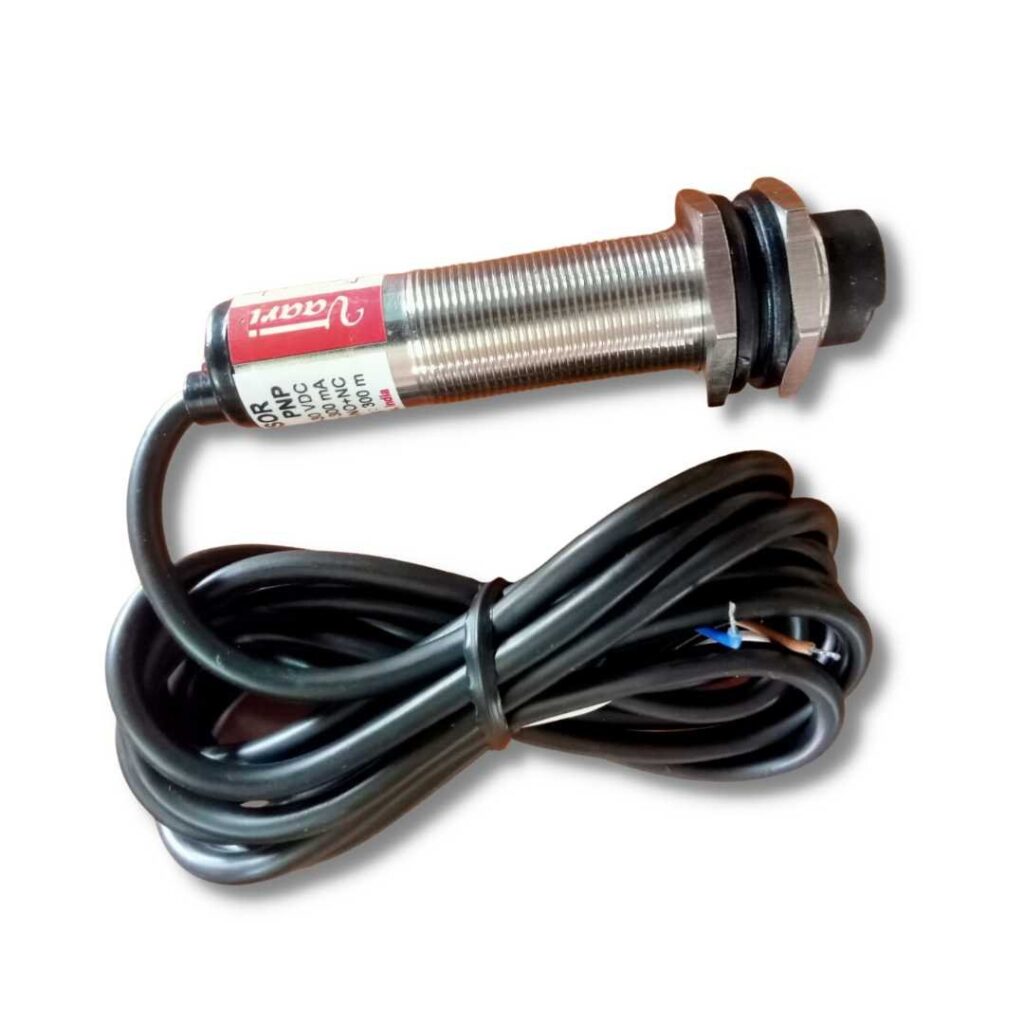

Photo Electric Sensor VPE-B18LT300-WX-P1

Specifications

Brand	Vaari Sensors
Type	Diffused
Switching output	PNP, Light sensing
Rated Operating Distance	290mm + 10%
Supply Voltage	10-3 Vdc
Frequency Of Operating Cycle	25Hz
Hysteresis/Different Travel	<10%
Rated Operating Current	200mA
No-Load Supply Current	<50mA
Voltage Drop	<2.2 Vdc
Off state current	<0.1mA
Rated Insulation Voltage	75Vdc
Utilization Category	DC-13
Permissible ambient light	3000Lux
Protection Circuit	Short circuit/polarity reversal
Function Indication	Red-LED-Output, Green LED-Stability
Operating Temperature	-5 Degree C to +55 Degree C
Housing Material	Cuzn Nickel Plated
Degree Of Protection	IP54
Connection	M12 Connector
Standards confirmity	EN - 60947-5-2
Approval	CE
