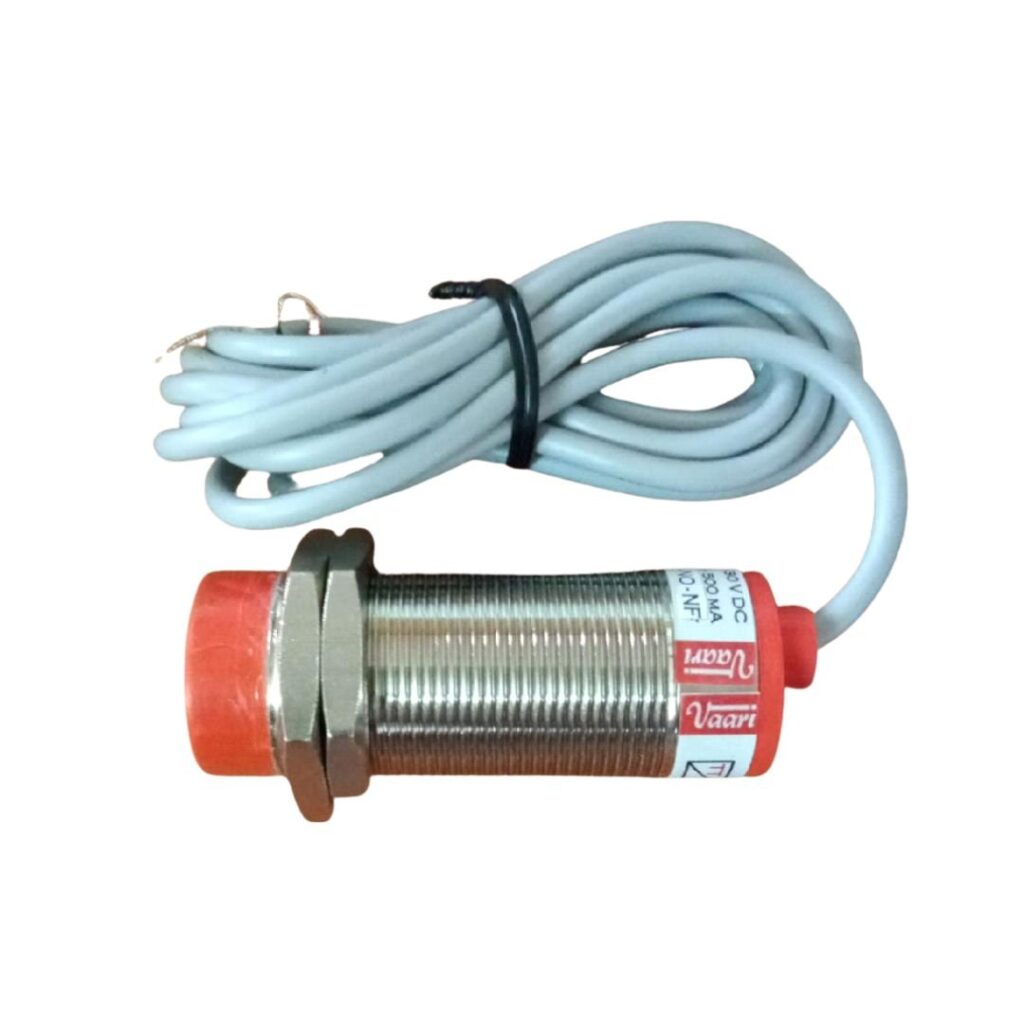

Inductive Proximity Sensor VPX-B30-LT-15-WX-N1

Specifications

Brand	Vaari Sensors
Type	Inductive Proximity Sensor
Connection	2m PUR/3 x 0,14 mm2
Connection type:	Cable
Outlet:	NPN NO
Installation type:	Non Flush
LED	Yes
No-load current:	10 mA
Nominal voltage:	24 VDC
Reproducibility:	1 %
Switching hysteresis:	10 %
Diameter	M-30
Length	60mm
Switching distance change to Sensing Distance	15mm
Frequency	2KHz
Material	Nickal plated Brass
Protection class:	IP 67
Voltage drop:	1,2 V
Voltage type:	VDC
Voltage range:	10 – 30 V
Ampacity:	300 mA
Temperature drift:	10 °C
Environment temperature:	-25 bis 70 °C
